EyeKon Installation – MacBook
Please follow these instructions to setup EyeKon monitor on your MacBook laptop.
1) Magnetic Mount:

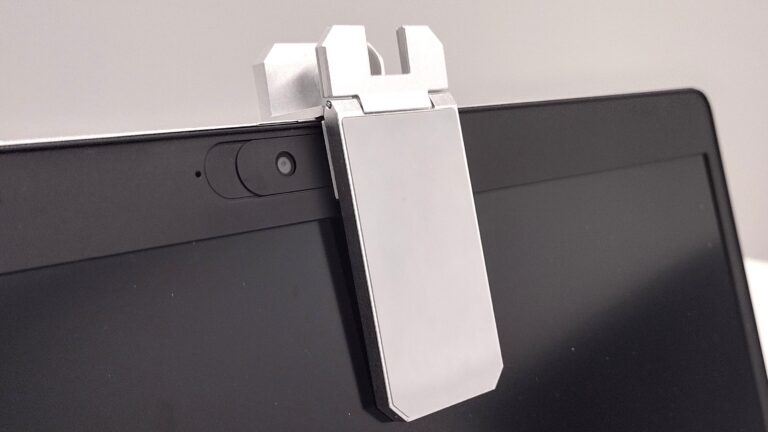

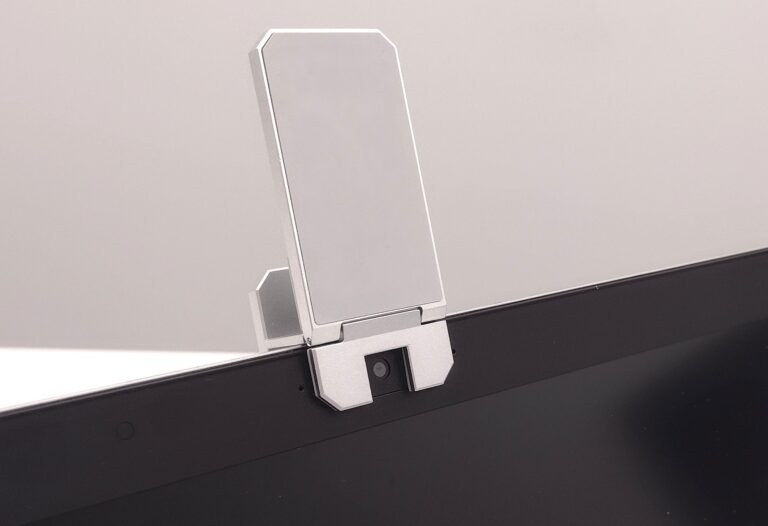

Install EyeKon mount on the laptop screen close to webcam, either on left or right side of the webcam. Secure it by tightening the back screw with silicone cap. The mount has both up and down positions as shown here.
Top – EyeKon above webcam
Bottom – EyeKon below webcam
2) Attach EyeKon:
Attach the EyeKon to the magnetic mount as shown. Once attached, adjust the EyeKon placement closest to the webcam using up & down maneuvering on magnetic surface.

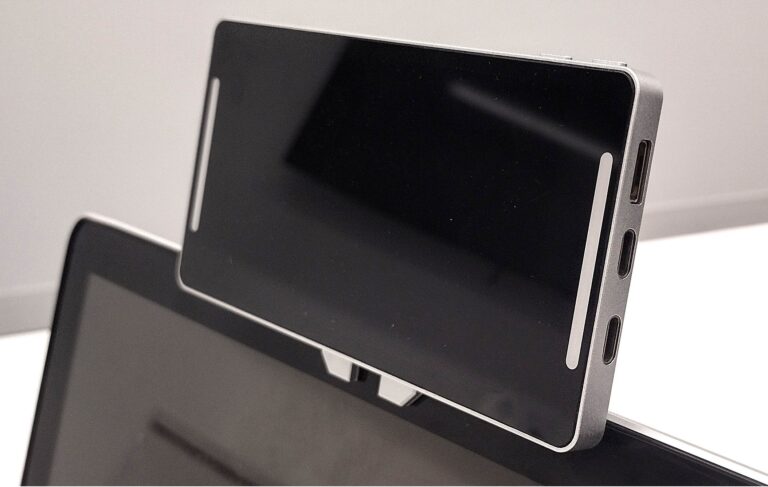

Above webcam

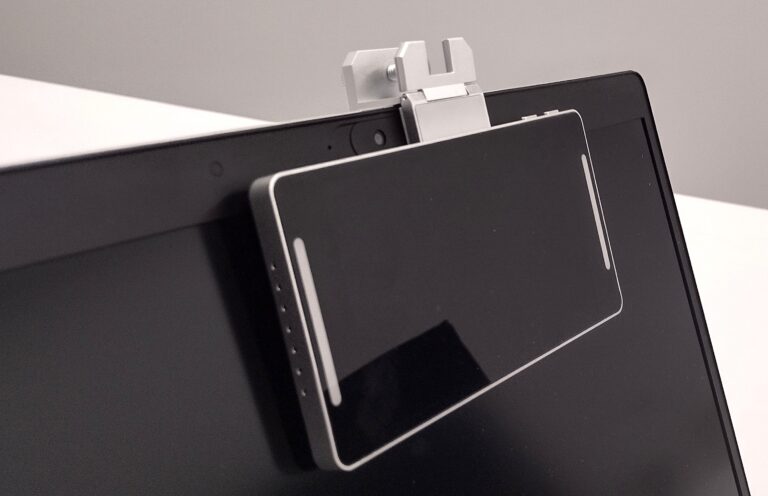

Below webcam
3) Cables:

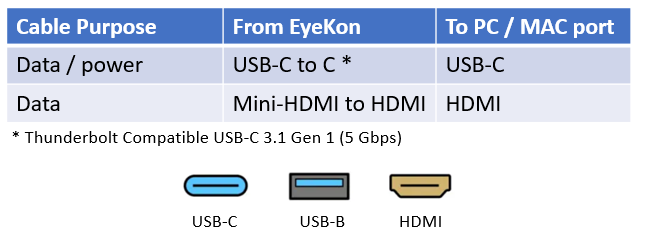

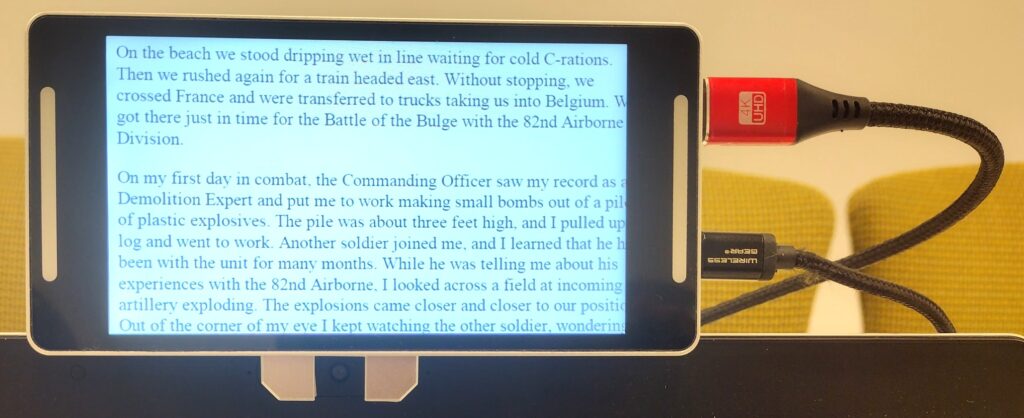

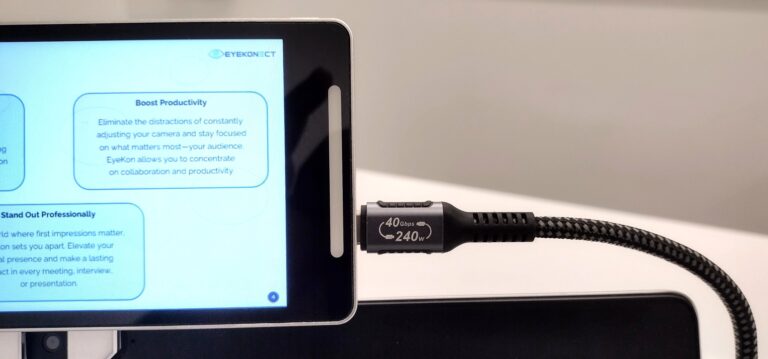

EyeKon comes with two cables and a USB to C converter as shown in the picture. USB-C to C is a Thunderbolt cable, and it enables you to connect EyeKon to PC/MAC with this cable alone through a Thunderbolt port. Please ensure your laptop has the appropriate ports to connect.
4) Connect to computer:
Click on Apple logo on top left of Mac screen.
Choose “Display Settings”
5) Display settings:
Click HDMI photo and select settings indicated on right.
6) EyeKon ready:
Click on “Arrange” and drag the
HDMI monitor to the top position in “landscape” mode as shown and Click “Done”
7) EyeKon video conference:
Launch the video app. Drag and drop video app into the EyeKon monitor as shown. Maximize the app and adjust the settings as needed (gallery vs speaker view, etc.).
Note: There are multiple ways to utilize EyeKon by using dual screen option in Zoom video settings.
